vb8 instrument

The vb8 instrument is a portable four-channel vibration data collector, analyzer and balancer. You can use this device for on-route and off-route data collection, machine-side analysis and diagnosis as well as on-site dynamic balance correction. The vb8 is certified for Class 1 Division 2 hazardous areas. It is ergonomically designed and lightweight for all day comfort. The vb8 provides recordings with up to 12,800 lines of resolution and up to 80 kHz Fmax. Our patented adaptive settling algorithm and 6Pack recording system offer quick, one-step data recording. The vb8 has plenty of storage and long battery life. This device is backed by five years of warranty. The vb8 is one of Bently Nevada hardware monitoring assets that work with System 1* and Ascent* Level 2 software.

The Bently Nevada VB Series Condition Monitors are built to robust professional standards, making them the first choice for numerous leading companies around the world. Featuring powerful, condition monitoring software, this tiered instrument range varies in features and price, enabling you to select the model with the set of features you require. The VB Series models are rated for CSA Class 1, Division 2.

The vb7 instrument is a portable dual channel vibration data collector, analyzer and balancer. You can use this device for onroute and off-route data collection, machine-side analysis and diagnosis as well as on-site dynamic balance correction. The vb7 is certified for Class 1Division 2 hazardous areas. It is ergonomically designed and lightweight for all day comfort. The vb7 provides recordings with up to 6,400 lines of resolution and up to 40 kHz Fmax. Our patented adaptive settling algorithm and 6Pack recording system offer quick, one-step data recording.

The vb8 instrument is a portable four-channel vibration data collector, analyzer and balancer. You can use this device for on route and off-route data collection, machine-side analysis and diagnosis as well as on-site dynamic balance correction. The vb8 is certified for Class 1Division 2 hazardous areas. It is ergonomically designed and lightweight for all day comfort. The vb8 provides recordings with up to 12,800 lines of resolution and up to 80 kHz Fmax. Our patented adaptive settling algorithm and 6 Pack recording system offer quick, one-step data recording.

Features

Dual or four channel models
Measurement range (1,000 g, 25,000 mm/s, 2,500mm)
Tachometer input
40 kHz Fmax (vb7) or 80 kHz Fmax (vb8)
6,400 or 12,800 lines FFT resolution

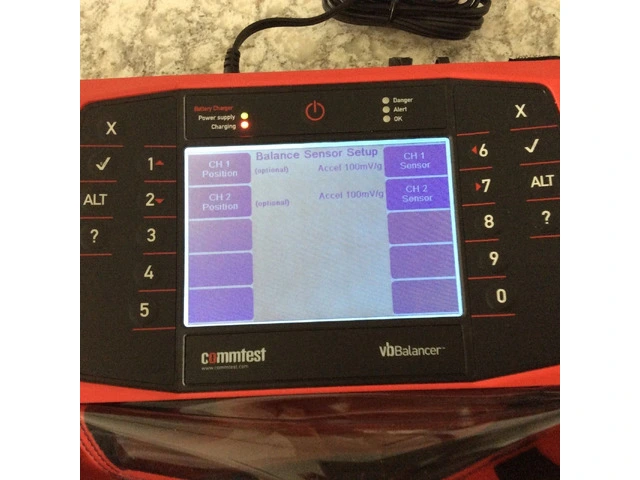

Two-place balancing
≥ 95 dB dynamic range
Spectrum and waveform recordings
1GB memory and virtually unlimited spectra storage
Integration with System 1 Condition Monitoring and Diagnostic software

INCLUDED :

Bently Nevada Commtest Transducer Cable
Bently Nevada Commtest Laser Tachometer Cable
Bently Nevada Commtest Triple BNC Cable
Bently Nevada Commtest Accelerometer Straight Cable (Green)
Bently Nevada Commtest Accelerometer Straight Cable (Red)
Frontier Wireless Sensor Kit
Bently Nevada vbX Battery Pack
Bently Nevada Commtest Carry Bag
Bently Nevada Commtest Dustcover
Bently Nevada Commtest Keyphasor Tachometer Cable
Bently Nevada Commtest 2-Channel Balancing Kit
Bently Nevada Commtest 4-Channel Balancing Kit
Bently Nevada Commtest Laser Tachometer
Bently Nevada Commtest Laser Tachometer and Block
Bently Nevada Commtest Laser Tachometer Magnetic Base
Bently Nevada Commtest Accelerometer Magnetic Base (Female)
Bently Nevada Commtest Accelerometer Magnetic Base (Male)
Bently Nevada Commtest Safety Rings
Bently Nevada Commtest 780A-IS Accelerometer
Bently Nevada Commtest 787A-IS Accelerometer
Bently Nevada Commtest Power Supply
Bently Nevada S1 Remote Training for Portables
Bently Nevada Neck Strap



Availability:24 In Stock
Model:Commtest VB8
