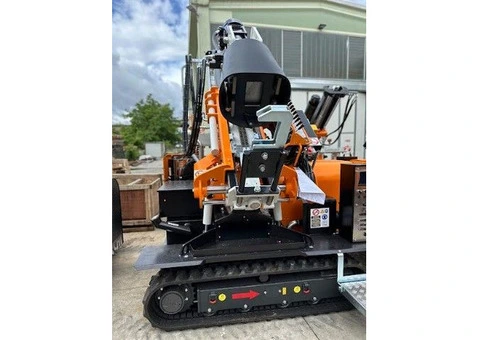

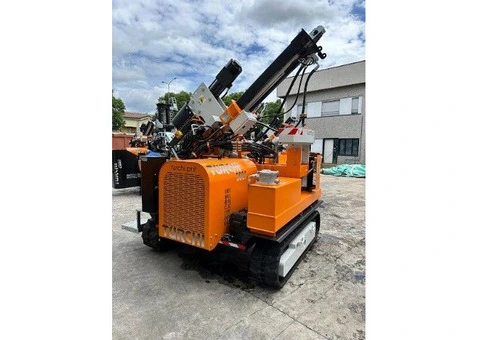

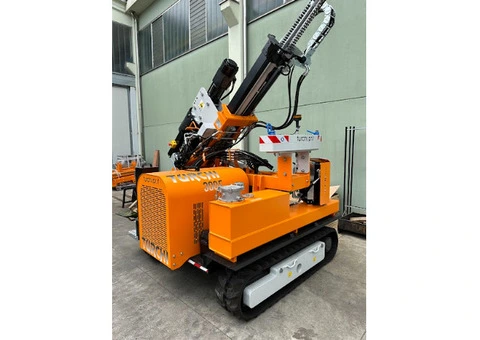

Pile Driver TURCHI 300-F in Aranda, Australia Capital Territory
Technical Features

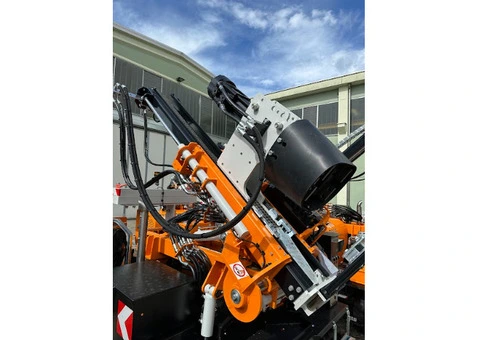

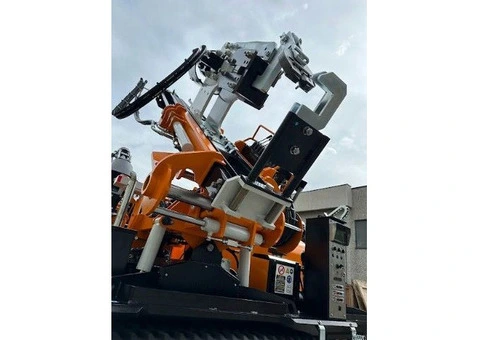

Hammer:
• Machine Dimension (AxBxH):
o Operational: 2160 x 2600 x 2300 mm
o For load: 3500 x 2120 x 2300 mm
• Weight: 4400 kg

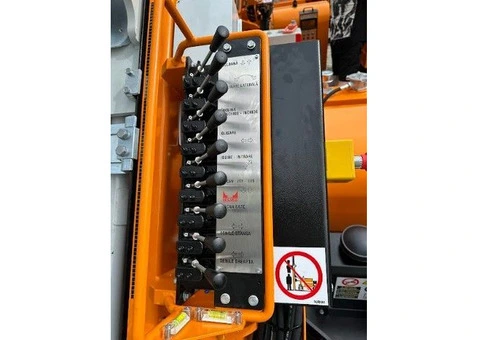

• Hydraulic Movements:
1. Hammer operating
2. Lifting and lowering the hammer
3. Exit – Entry (Stroke 620 mm)
4. Translation: 130 + 130 mm
5. Work transport inclination: +10° to -51°
6. Lateral inclination: +9.5° to -9.5°
7. Column raising and lowering (Stroke 500 mm)
8. Track left direction
9. Track right direction
• Oil Pressure: 180 BAR
• Hydraulic System: Adjustable beat frequency at gear
• Hydraulic Pump: Oil supply capacity 60-90 LT./MIN., Relief pressure setting at 170 BAR
• Capacity Oil Tank: 140 liters
• Under Carriage: Two-speed
o Speed: 1.9 – 3.33 Km/h
• Extension to Drive Post Max Height: 4.40 meters
Impact Specifications
• Impact Power: 950/1200 JOULE
• Impact Rate: 620-1500/570-1180
• Weight: 350 kg/450 kg
Engine
• Cylinders: 3
• Type: Doosan Engine
• Displacement: 1800 cm³
• Power at 2500 RPM: 41 kW
• Cooling: Liquid-cooled
Price
• Cost: 77,000 €
Selling in all Australia!!!
