800-042 Marine Engine Mount | Headland Engineering in Sydney, New South Wales

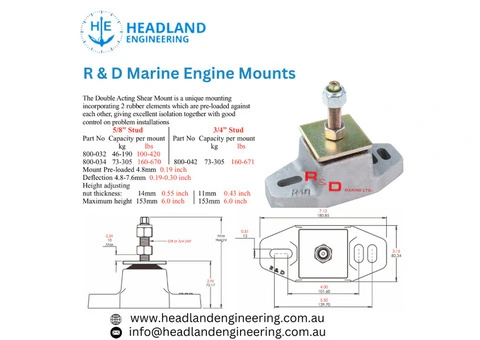

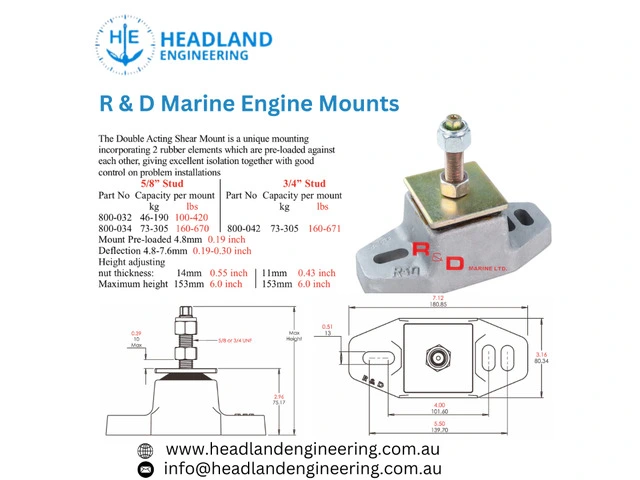

R & D Marine Engine Mounts
The Double Acting Shear Mount is a unique mounting incorporating 2 rubber elements which are pre-loaded against each other, giving excellent isolation together with good control on problem installations
5/8” Stud
Part No: 800-042
Capacity per mount: 73-305kg (160-671lbs)
Mount Pre-loaded 4.8mm (0.19 inch)
Deflection 4.8-7.6mm (0.19-0.30 inch)
Height adjusting
Nut thickness: 11mm (0.43 inch)
Maximum height 153mm (6.0 inch)
Price is per piece.
Price includes freight and GST
Delivery can take up-to 4 weeks based on stock availability
Discount applicable for Trade supply
We can ship throughout USA and Europe also to Oceania countries
Please email us at info@headlandengineering.com.au for international shipping as required
