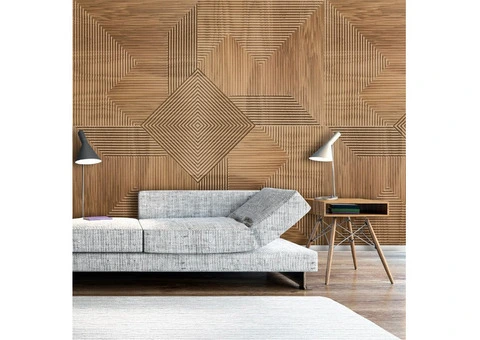

3D Architectural Panels in Bayside, Victoria

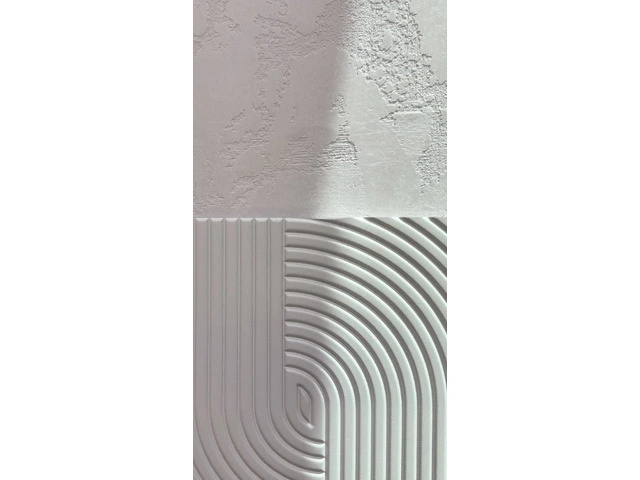

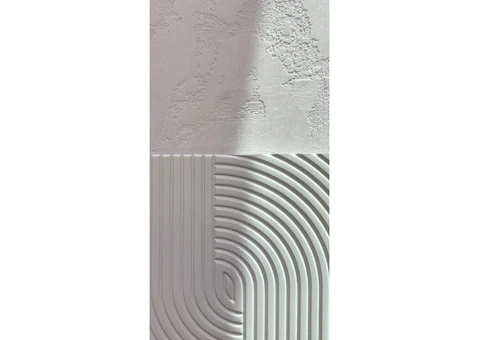

3D Wall Panel Zen employs a Japanese-styled textured pattern reminiscent of the raking of a zen garden, offering a serene and balanced wall panelling option. These decorative wall panels guarantee a seamless, handmade design that’s easy to apply, making your next commercial or residential building project modern and innovative.
These panels are available in 2400x1200mm format.
Panel size: 2400x1200x16mm
Available finishes: white solvent-based primer
Surface Finish: white paintable primer
140001 Valpon F Blanco 2:1
Intermediate White Polyurethane Primer
Primer application guidelines
This product is designed for use as an intermediate layer between the sanded primer and the polyurethane finish and have the following benefits:
Perfectly covers "burn-through" marks caused during sanding.
Evens out different shades of the primer, achieving a more uniform finish.
Eliminates sanding marks and other sanding defects.
Recommended for use under high-gloss white lacquers.
Suitable for all types of wood and wood-based products (veneers, MDF, etc.), with precautions for highly resinous or difficult-pored tropical woods.
Ideal for all types of lacquered furniture, including those requiring vertical application due to its good thixotropy (assembled furniture, chairs, interior carpentry, juvenile furniture, etc.).
Recommended for lacquered kitchen and bathroom furniture.
APPLICATION GUIDELINES AND PRACTICAL ADVICE
This product can be applied using:
Cup guns
Pressure pot systems
Air spray guns (Nozzle: 2.5 mm, Pressure: 2.5 - 3 atm)
Air mix guns
Curtain coating machines, using the appropriate solvent
Mixing Ratio:
Mix 2 parts (by volume) of 140001 Valpon F Blanco with 1 part of Hardener 190091 Valpon E NAM, stirring until a uniform mixture is achieved.
Preparation:
Sand the primer with 360-400 grit sandpaper before the application and make sure the surface is free from dust and contaminants (silicone, grease, varnish residues, etc.).
If recoated with a finish within 8 hours, sanding is not necessary but recommended to remove defects.
If more than 8 hours have passed, sand more thoroughly with 400-500 grit sandpaper to ensure adhesion of the finish coat.
Recommended Environmental Conditions for Application:
Temperature: 15 to 25 ºC
Humidity: 50%-70%
Recommended Solvents:
Winter: Use 510102 Valdis Polyurethane (fast evaporation, significantly reduces viscosity).
General use: Use 510101 Valdis P (medium/fast evaporation).
Summer: Use 540414 Valdis V Antivelo Lento alone or mixed with 500028 Valdis V Superlento for very hot conditions.
Curtain coating machine: Use 540438 Valdis V Máquina Cortina.
PRODUCT INFORMATION
Pot life: 3 hours
Drying time (120 microns on the inert substrate at 25ºC):
Dust dry: 30 minutes
Touch dry: 60 minutes
Hard dry: 2 hours
Stacking time: 24 hours
Recoat interval without sanding: 1 to 8 hours
Sanding time at 25ºC: After 5 to 6 hours
Recommended application weight: 140 to 160 g/m²
Applying a temperature gradient of 35 to 40 ºC during drying improves drying and sanding performance.
It can be tinted with pigment pastes to obtain pastel shades.
TECHNICAL CHARACTERISTICS
Viscosity of the mixture: 16 to 22 seconds (DIN 4 at 25ºC)
Density: 1.380 to 1.420 g/cm³ at 25ºC
Panel weight (wood): 18x2400x1200 mm - 36 kg
Panel weight (MDF): 16x2400x1200 mm - 37 kg
VOC content (by weight): 30.8%
PRECAUTIONS
Recommended storage temperature: 5 to 35 ºC, avoiding direct exposure to sunlight.
Shelf life: 12 months
Regarding product hazards and toxicity, refer to the Safety Data Sheet before use.
Due to various working conditions, all data in this document should be adjusted to the respective manufacturing and handling conditions.
ValResa guarantees the quality of its products in accordance with General Conditions of Sale and Supply.
Country of origin: Portugal, Europe
