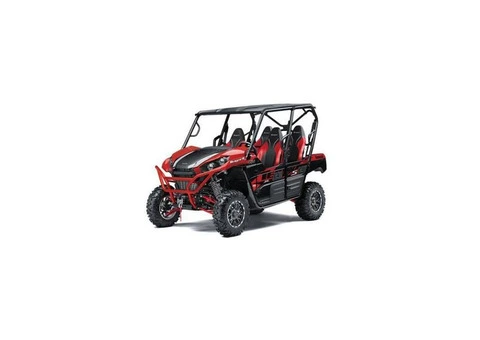

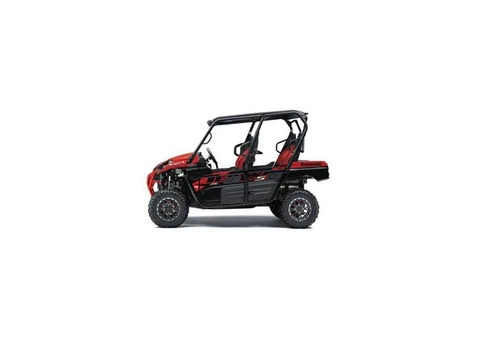

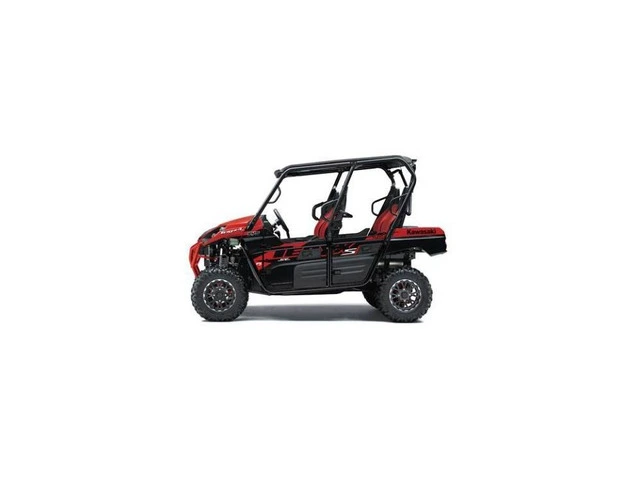

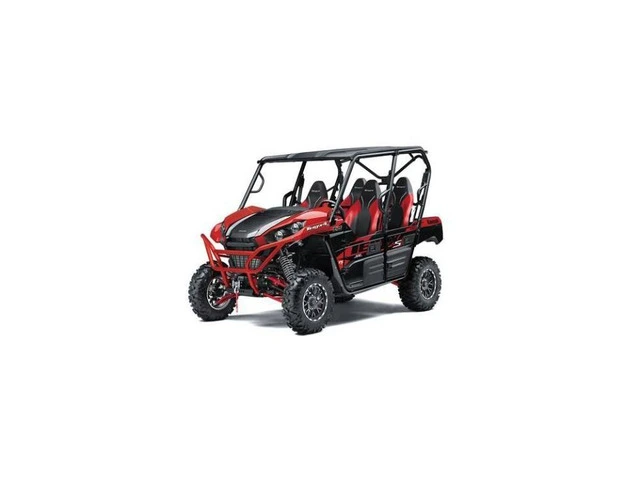

2024 Kawasaki Teryx4 S Special Edition in Capital Hill, Australia Capital Territory
Description
Capability
Front Suspension / Wheel Travel: Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping/10.7 in.
Rear Suspension / Wheel Travel: Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping/10.0 in.
Front Tires: Maxxis 27 x 9-14
Rear Tires: Maxxis 27 x 11-14
Steering: Electric Power Steering (EPS) / rack-and-pinion
Front Brakes: Dual hydraulic discs with two-piston calipers
Rear Brakes: Sealed, oil-bathed, multi-disc
Ground Clearance: 12.2 in. (max) / 11.2 in. (std)
Fuel Capacity: 7.9 gal.
Turning Radius: 17.7 ft.
Cargo Bed Dimensions (LxWxH): 17.9 x 47.6 x 8.7 in.
Cargo Bed Capacity: 249 lb.
Load Capacity: 1054 lb.
Seating Capacity: 4
Towing Capacity: 1300 lb.
Lighting: (4) LED headlights, (2) LED taillights, LED stoplight
Details
Frame: Steel Tube Double-X Reinforcement
Overall Length: 125.4 in.
Overall Width: 62.6 in.
Overall Height: 80.5 in.
Curb Weight: 1684.6 lb.
Wheelbase: 88.2 in.
Instruments: Multi-function digital meter with speedometer, fuel gauge, clock, hour meter, odometer, dual trip meter and parking-brake indicator, R/N/P/4WD, water temp and low-oil-pressure indicators
Wheel Type: Alloy
Color Choices: Candy Persimmon Red
Warranty: Kawasaki Strong 3-Year Limited Warranty
Kawasaki Protection Plus™ (optional): 12, 24, or 36 months
Power
Engine: 4-stroke, SOHC, 4-valve V-twin, liquid-cooled
Displacement: 783cc
Bore x Stroke: 85.0 x 69.0mm.
Compression Ratio: 10.7:1
Maximum Torque: 47.0 lb-ft. @ 5500 rpm
Fuel System: DFI® with two 36mm. Mikuni throttle bodies
Ignition: TCBI with electronic advance
Starting System: Electric
Transmission: Automatic CVT with centrifugal clutch (H,L,N,R)
Final Drive: Selectable 2WD/4WD with locking front differential, shaft
Engine Braking: Yes
